Cold Roll Steel SC LC 12fo 6fo Lgx Adapter Panel 130*30mm

cold roll steel lgx adapter panel china lgx adapter plate 12fo lgx adapter panel 6fo

• Fiber Adapter Panel with LGX Footprint in UPC Polish, is Fully Loaded with 6 LC Duplex Adapters for OS1/OS2 Singlemode Applications. They are designed for fast and simple deploy and installation in a Fiber Termination Box or Fiber Patch Panel that require a plate full of couplers to get the Job Done.
• LGX Duplex Horizontal LC Adapter Plate is designed with a Robust Steel Design, great for Indoor applications, data centers, telecom and security networks.
• Constructed in Steel with Black Color (RAL 9004) and an Electro Static Powder Coating, is a great fit for a lot of compatible Patch Panels in the Market. With the great fit and precision
• Fully Loaded: All our LGX Plates are pre-loaded with Beyondtech individually tested Singlemode Fiber Optics Adapters, and feature a Simple-Snap-in mechanism for an easy-no tool required setting up.
• LGX Footprint Fiber Adapter Plate is designed and complies with the last: TIA/EIA 568.C, ISO/IEC 11801, EN 50173, IEC 60304, IEC 61754, EN 297-1

YHT manufactures a wide range of Lgx Footprint LC Adapter Panel where precision alignment, high reliability, and reconnectable are the primary concerns.

The plates are fully interchangeable for different applications and different products including wall ODF and Fiber patch panels and boxes.

LGX Plates could be used in a wide range of telecom applications like Data centers, Fiber infrastructure, security boxes among others.

This Duplex Horizontal Singlemode LC UPC LGX Adapter Plate is used to mate two LC connectors together mounted in a distribution panel or wall box.

• Supplied with LC adapters pre-loaded (Lock and Run).
• Fully Compatible with Duplex Horizontal couplers from YHT
• Color of Adapter: Blue (SM)
• Quantity of installed adapters: 6 Units.
• Color of plate: Black (RAL9004)
• Coating Material:Electro Static Powder Coating
• Ultra Physical Contact (UPC)
• Singlemode
• Duplex Horizontal
• Complies with TIA/EIA 568.C, ISO/IEC 11801, EN 50173, IEC 60304, IEC 61754, EN 297-1
• RoHS compliant

6fo Lgx Adapter Panel

12fo Lgx Adapter Panel

SC LC Lgx Adapter Plate

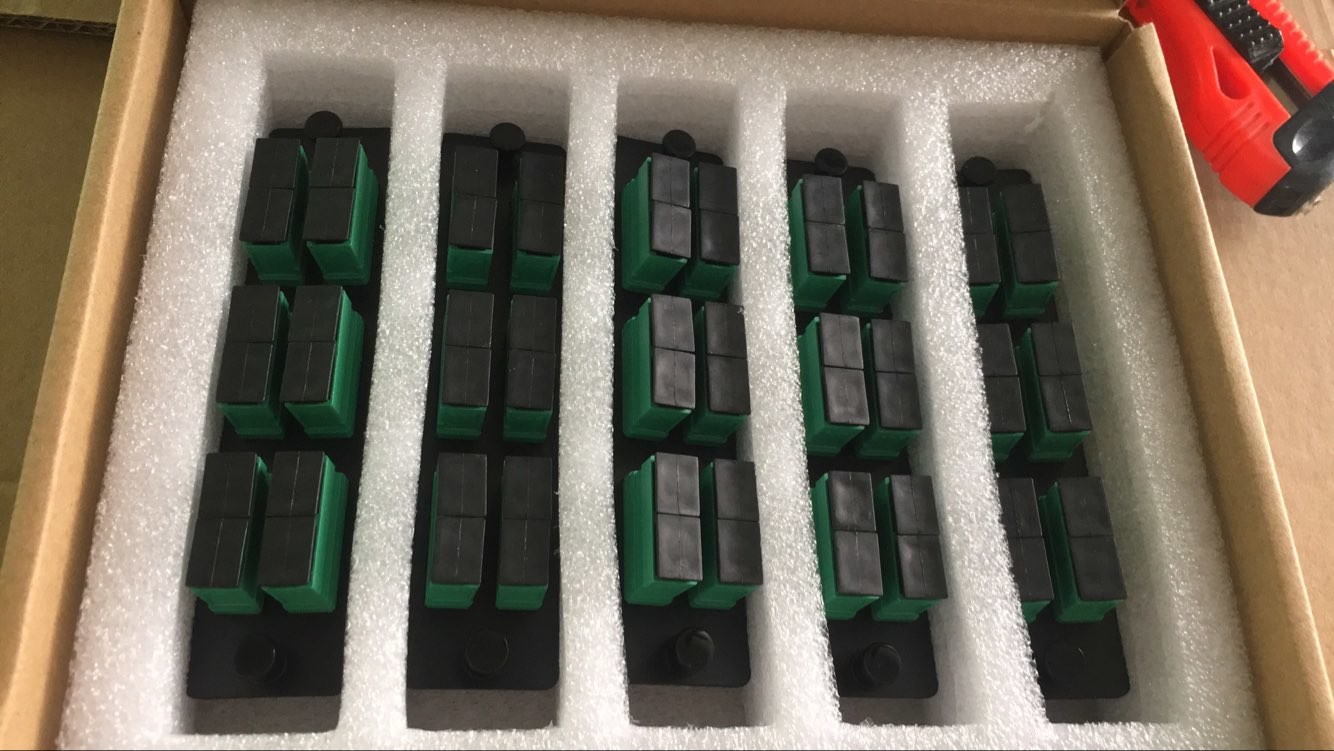

Cold Roll Steel SC LC 12fo 6fo Lgx Adapter Panel 130*30mm Images
