Fiber Optic FTTB FTTX Abs 19" 1U Sliding Patch Panel

Name: Fiber Optic FTTB FTTX Abs 19quot 1U Sliding Patch Panel
Brand: CSYHT
Price: 10 USD

Quality Fiber Optic FTTB FTTX Abs 19" 1U Sliding Patch Panel wholesale

Brand Name : CSYHT

Model Number : ODF-PRW1U

Certification : ISO9001:2015

Place of Origin : Huizhou, China

MOQ : 100pcs

Price : 10usd

Payment Terms : L/C, T/T

Supply Ability : 5000pcs / 2 weeks

Delivery Time : 7 working days

Packaging Details : carton or OEM package.

Material : ABS plastic housing + metal adapter panel

Product name : ABS 19inch sliding patch panel

Dimension : W 482mm × H 44mm × D 300mm

Color : Black,white,customized

Application : FTTH FTTB FTTX Network,Telecom,CATV

Installation : Rack mount

Type : draw type fiber optic path panel,1U

Capacity : 24SC / 48 LC

Adapter : ST,FC,SC,LC

Height : 1U/2U

Working temperature : -40℃~65℃

Storage temperature : -45°C~+60°C

Tray : 24 cores per tray

Product type : slide-out drawer enclosure with splice trays,Rack mount

Contact Now

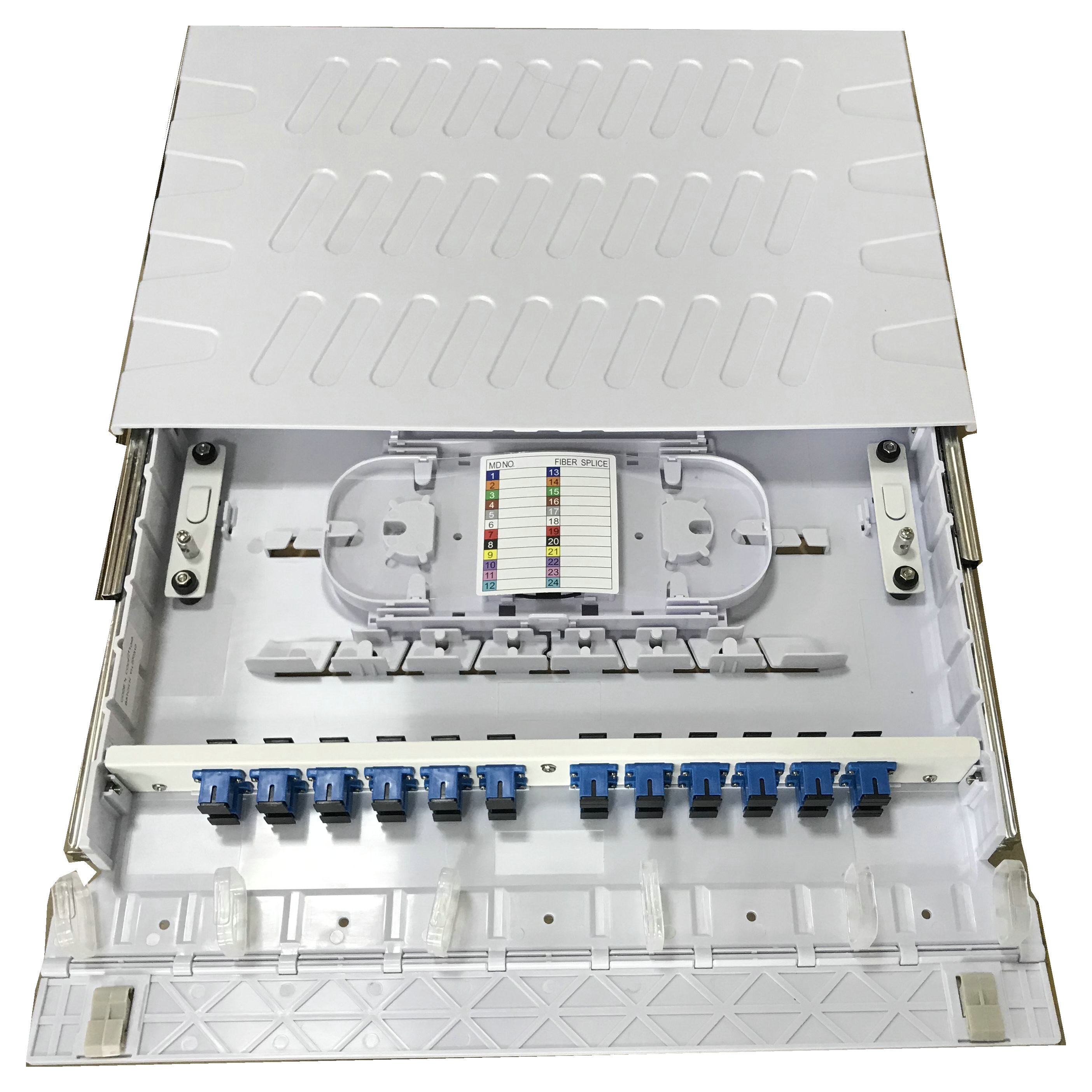

Plastic fiber optic distribution frame 1u 19inch sliding patch panel

Slidable Rack-mount Fiber Optic Distribution Frame has aluminum sliding fittings with self-locking functions prevent the drawer from falling when moved; 19-inch rack mount for ST, SC, LC, MTRJ, FC adapters. The drawer is the holding board for splicing, easy to withdraw the fibers when testing and distributing.

Features:

1)Max capacity is 36cores ( SC Simplex port adapters)

2)Special sliding design, operation easy and convenient

3)Variety of coled-rolled steel adapter plate for choice based on different demands

4)Material is ABS plastic, light weight.Black or white optional.

Application:

Telecommunications subscriber loop

Fiber to the home (FTTH)

LAN/WAN

CATV

Configuration form:

Model	Capacity	Adapter type	Splice tray Qty	Standard splice tray	Optional splice tray
ODF-PRS-1U/12C	12C	12 SC simplex	1PCS	OST-010G	OST-022
ODF-PRS-1U/24C	24C	24 SC simplex	1PCS	OST-010G	OST-022
ODF-PRS-1U/48C	48C	24 SC duplex	2PCS	OST-010G	OST-022
ODF-PRS-1U/96C	96C	24 LC quad	4pcs	OST-022	/

Details :

Fiber Optic FTTB FTTX Abs 19" 1U Sliding Patch Panel

Product Tags:

19" 1U Sliding Patch Panel

FTTX Sliding Patch Panel

FTTB Fiber Optic Distribution Box
