Wall Mount ABS 16cores FTTH Fiber Optic Terminal Box IP65

Name: Wall Mount ABS 16cores FTTH Fiber Optic Terminal Box IP65
Brand: CSYHT
Price: 8.5 USD

Quality Wall Mount ABS 16cores FTTH Fiber Optic Terminal Box IP65 wholesale

Brand Name : CSYHT

Model Number : B0216D

Certification : ISO9001:2015

Place of Origin : CHINA

MOQ : 50PCS

Price : 8.5USD

Payment Terms : T/T

Supply Ability : 5000pcs per week

Delivery Time : 7 working days

Packaging Details : carton

Material : ABS plastic

Cable ports : 2 PGgland / 1 uncut port + 16 drop ports

Color : white, black

Adapter : Max 16 SC simplex adapters

Splitter : 1*16, 1*8,1*4,1*2

Waterproof : IP65

Application : wallmount and pole mount

Product name : FTTH Fiber Optic Terminal Box 16cores wallmount pole mount terminal box

Contact Now

FTTH Fiber Optic Terminal Box 16cores wallmount pole mount terminal box

Description:

The fiber optic terminal box is suitable for optical fiber splitting/splicing using. It is reasonable design for fiber arrangement, and its bend radius is more than 30mm.

Features

Industry Standard User Interface, be made of ABS plastic.

Can accommodate 1x4,1x8,1X16, 2x4,2x8 & 2x16 PLC steel tube splitter.

Rainfall resistant, outdoor using.

Can load 16pcs LC, FC, ST, SC … adapters.

Wall mounting and pole mounting application.

2pcs cable entry ports; cable can be entry without cutting.

16pcs exit ports for FTTH drop cable.

Application

FTTH access network.

Telecommunication Networks

CATV Networks

Data communications Networks

Specification:

Model	Capacity	Dimension	Remark
B0216D	Max.16fibers	236.5x304.1x104.3mm	Can load max.2pcs splitter box Can load max.16pcs SC simplex, FC simplex, LC duplex … adapters

Product Details :

Wall Mount ABS 16cores FTTH Fiber Optic Terminal Box IP65

Product Tags:

16cores FTTH Fiber Optic Terminal Box

ABS FTTH Fiber Optic Terminal Box

IP65 Pole Mount Terminal Box

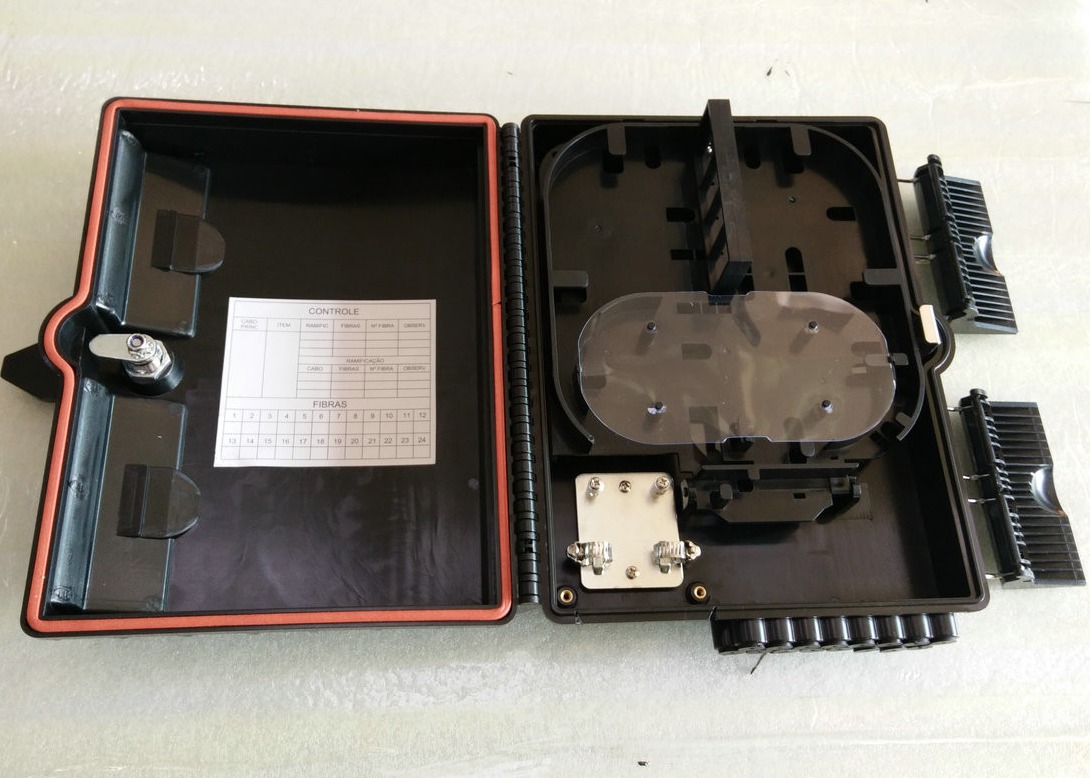

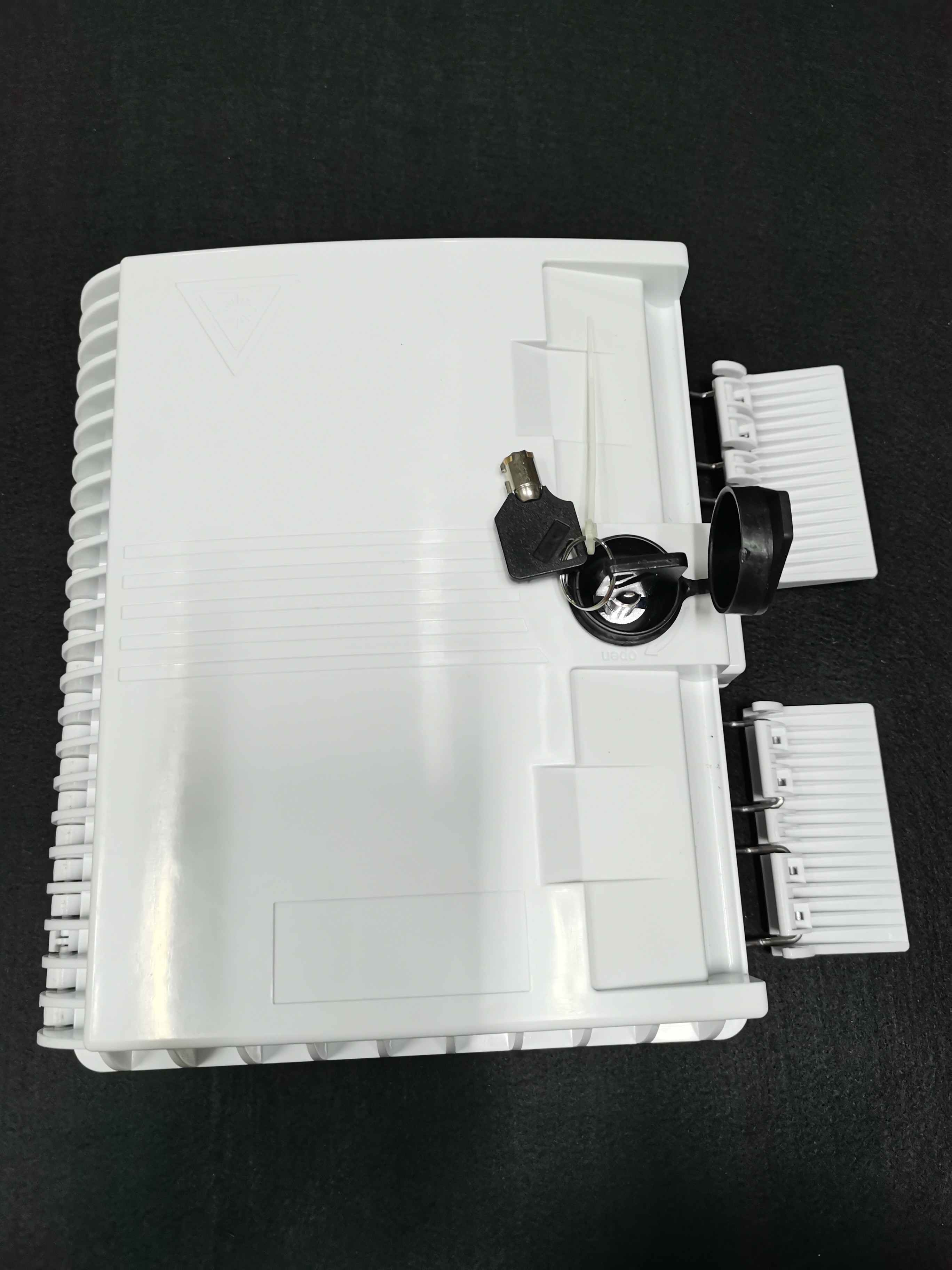

Wall Mount ABS 16cores FTTH Fiber Optic Terminal Box IP65 Images
